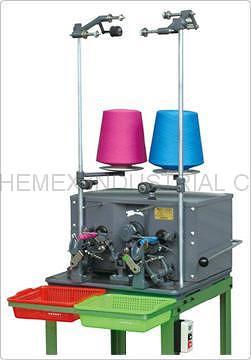

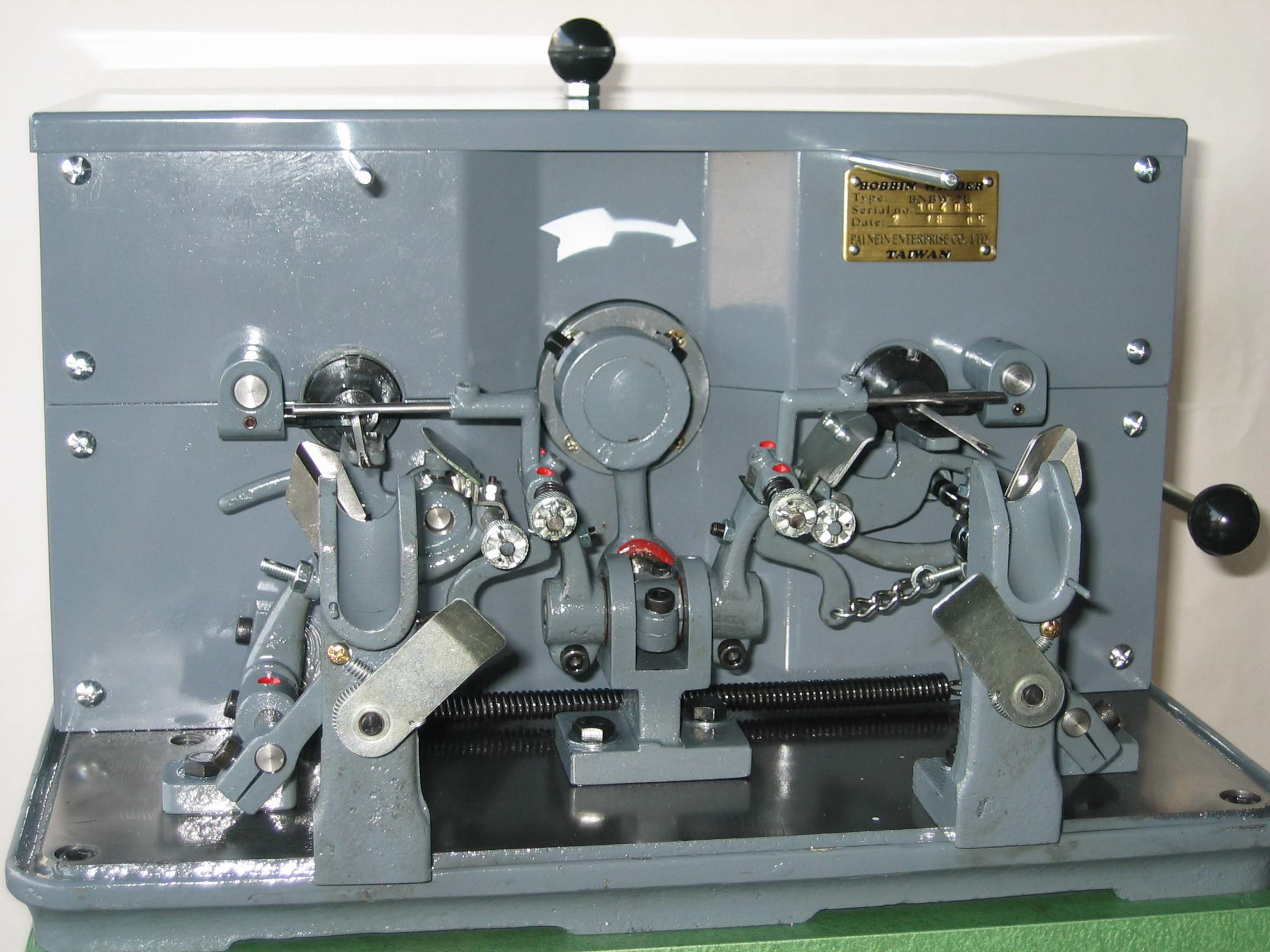

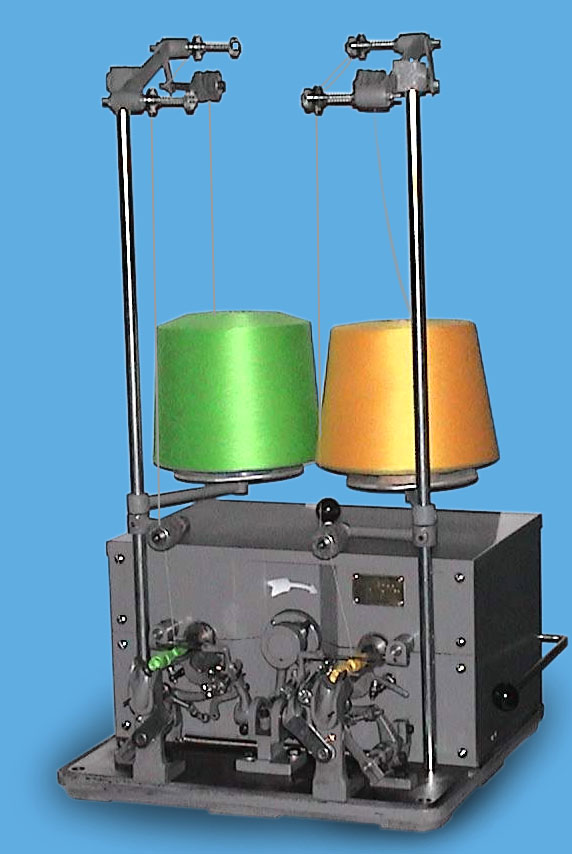

Bobbin Winder

Bobbin Winder

Suitable for Schiffli Lace Embroidery and Computerized multi-needle quilting machines.

◆ Easy to operate, maintain and adjust

◆ Fast speed and durable

◆ Suitable for high speed embroidery machine, such as, Lasser, TWIN400 (420rpm) or Saurer, 4040HP & EPOCA II(420rpm), Computerized Embroidery Machine.

Items: Specification: Notes:
Machine Model BNBW-2E
Name of Machine Bobbin Winder
Suitable Material Cotton & SP & Nylon ( rear material) 40/2,50/2,60/2,80/2
Application of Bobbins Lace & Quilting (Embroidery)
Standard Bobbin Sizes
Size D L
#6 12 35
#7 12.7 33
#9 12 38
#10 15 43
1. Sizes can be #6, #7, #9, #10 or the usual size,which can be smaller or bigger according to user's requirement.
Bobbin Output Capacity 8 kgs per 24 hours (4 grams ea. Bobbin) Based on NE60/2
Main Shaft Speed 1685 RPM For ex.: 220V / 60HZ.
Take-up Speed 4380 RPM
High Precision Oil-contented Bearings 24 hours machine running, durable, no wearing off!
Power Consumption 0.25 KW
Machine Net Weight 90 Kgs
Packing Gross Weight 105 Kgs
Packing Crate Measure 86 L x 64 W x 43 H (CM)
Optional Spare Parts Order according to the Spare Parts List Or recommended by CHEMEX
